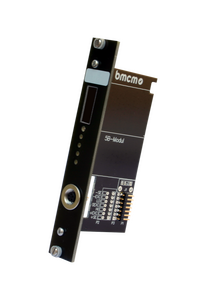

AMS-K-BIN5

AMS-K-BIN5

€ 99.00

Quantity:

Modular Amplifier Technology.

The AMS amplifier systems from BMC Messsysteme GmbH can be equipped with different plug-in cassettes of the AMS-K series carrying 5B compatible modules - just so easy and comfortable.

The Right Connection.

The available plug-in cassettes have different connectors on the front panel. Depending on the sensor or signal to be connected, the suitable cassette can be chosen. The cassette AMS-K-BIN5 features a 5-pin Binder female connector of the 712 series.

Equip Individally.

The 5B modules are placed on the assigned position of the cassette and screwed to the panel. Via the small bore holes at the relevant position on the front panel, the potentiometers of the 5B modules can still be reached for calibration even after being mounted into the AMS device.

Plug-In. Screw Tightly. Done.

The equipped individual cassettes are pushed along guide bars into the AMS device, plugged into the backplane with the front panel being screwed tightly to the AMS housing. Unneeded slots are covered by a blank panel (AMS-K-BLANK).

It's All in the Combination.

As the cassettes equipped with different 5B modules can be used in any combination, the AMS amplifier system can perfectly be adapted to the measuring task.

Versions and Options. Something for Everybody.

AMS devices are available in two sizes: as a mobile tabletop unit in 42HP format, or as a stationary 19" rack system in 84HP format. The 42HP version features eight slots for the plug-in cassettes, the 84HP sixteen accordingly. 8-channel devices can be extended to 16 slots with the option AMS-EXT8.

The most important functions in a nutshell. For technical details see the relating data sheet (PDF).

plug-in cassette for all AMS devices
signal connection at 5-pin Binder female connector
suitable for all 5B modules
easy mounting
fast adaption to measuring task, sensor, and signal

Datenblatt - Cassettes for AMS devices (AMS-K series) (v. 4.0.1)
