USB-PIO

USB-PIO

€ 59.00

Quantity:

24 Lines. Digital. Output & Monitoring.

Record and output digital TTL signals (5V). The USB-PIO has three groups of 8 lines each with switchable direction. The lines are routed through a 25-pin D-Sub connector.

Extra small. Extra red. Extra affordable.

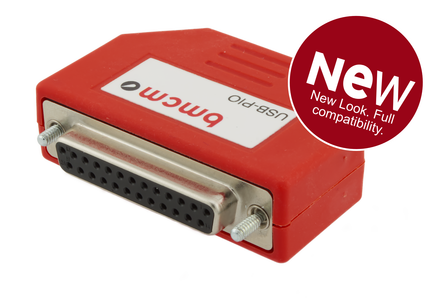

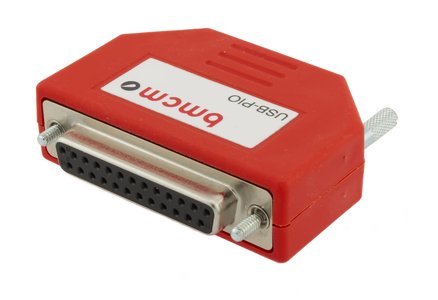

The unique idea of the USB-PIO: The data acquisition system is accomodated in the D-Sub connector housing. Not only the size is extra small but also the price.

Modern with USB-C. Plug & Play.

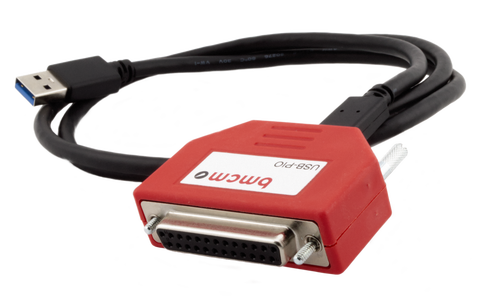

The connection to the PC is made via USB-C. This allows the USB-PIO to take advantage of all typical USB features (e.g. Plug & Play, Hot-Plug). Up to 127 devices can be connected and installed while the system is running.

Powered by USB.

The device is supplied with power via the USB interface. This reduces cabling efforts to a minimum and makes mobile measurements a lot easier.

Optimal for Windows. 11

The drivers and programming interface is optimized for 64Bit under Windows® 11. All software for installation and programming of the USB-PIO is included free of charge.

NextView. Try for Free.

The DAQ system is supported by NextView, the software for data acquisition and analysis. A fully functional 14-day trial can be requested under www.nextview.de. So it is possible, to directly test the functionality of the device.

Get Connected.

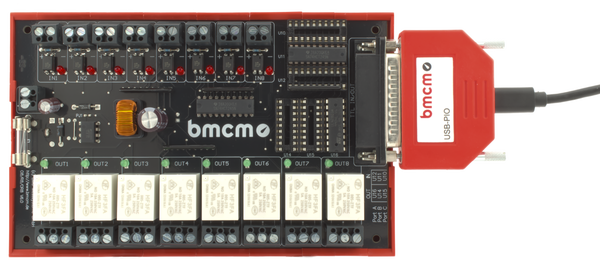

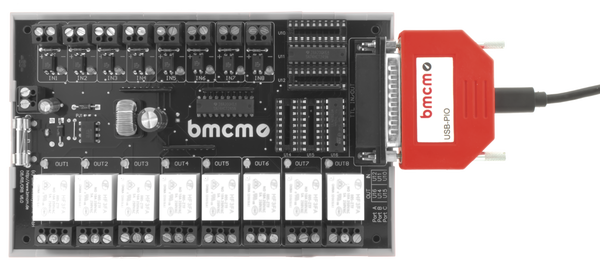

For galvanic isolation of the digital lines, the optocoupler and relay card OR8 from bmcm is available. Simply plug in and get started.

The most important functions in a nutshell. For technical details see the relating data sheet (PDF).

24 digital channels (TTL/CMOS)
3 ports (8-bit), bidirectional
bus-powered
USB 2.0, full-speed
device integrated in compact D-Sub housing
USB cable (USB-C to USB-A) included

Hardware and Software from One Hand

Drivers and programming support are naturally included with all DAQ systems for free and can be downloaded from this website.

bmcm Driver Package

USB/PCI/PCIe data acquisition hardware always requires the installation of a device driver to be accessible by software. By providing a free bmcm driver package, the device installation has to be done only once - additional DAQ hardware is installed automatically.

Simply NextView

For all who want to start right away: View and store signals, configure the measurement system, process measuring data and much more.
Test all features of the data acquisition software 14 days for free! As a premium member of bmcm you can test all functionalitys of NextView for 30 days.
Next...

Simply LIBAD

Programming leanly and quickly: Use bmcm data acquisition systems in your own programs. The hardware independent programming interface (API) LIBAD4 is available as DLL in 64 Bit (Windows 10/11).
Next...

Datenblatt - Digital I/O Interface USB-PIO (USB) (v. 8.0)

BMCM - Drivers for Windows 10 / 11

Software - Driver package for bmcm data acquisition hardware (v. 5.1.606)

You are looking for drivers for older windows versions? You can find them in the download archive.

NextView - Measurement Software

Handbuch - User manual for NextView® 5 (v. 5.0)
Software - Installation of NextView® 5.2 (Pro, Lite, Analysis, Trial) (64bit) (v. 5.2.647)

LIBAD - Programming Interface (API)

Handbuch - Library for programming interface LIBAD4 (v. 5.0)
Software - Programming interface LIBAD4 API für Windows® (v. 5.0.584)
