MA-KIT
 79.00
MA-KIT
MA-KIT

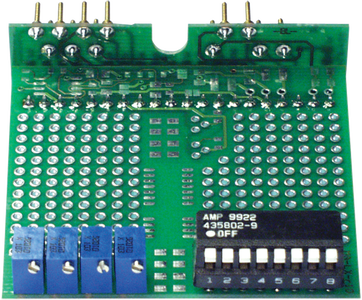

MA-KIT Platine oben
MA-KIT Platine unten
Blockdiagramm

Self made. Individual.

The construction kit MA-KIT allows for the realization of special applications compatible to the 5B module series. It includes a stripboard with SMD pads which is assembled conventionally or with SMD components and integrated in a 5B module housing.

5B Technology. Industrial Standard.

The pin assignment of the 5B module corresponds to the 5B module standard of Analog Devices and Burr Brown. An additional 0EX pin has been introduced for sensors requiring unipolar supply to be suitable for connection.

It's the Setting that Matters.

Numerous functions can be implemented which are configurable via 8 DIP switches and soldering bridges. 4 potentiometers can be used for calibration.

Basic Functionality.

Basic functions are already provided on the board, which are selected by connecting solder bridges on the bottom side of the module.

Clearly Safe.

A Multifuse protects the module against overload. In this case, it is sufficient to interrupt the power supply. The Multifuse will be regenerated after one minute.

Compatibility.

The MA series provides a great variety of measuring amplifiers, measuring converters, or filter modules. They can be used in any combination allowing for the solution of the most individual measuring tasks.

Get Connected.

With the backplanes and amplifier systems for 5B mod­ules varying in size and design, signal connection is easy.

The most important functions in a nutshell. For technical details see the relating data sheet (PDF).

  •   5B compatible housing and pin assignment
  •   function selection via DIP switches or solder bridges
  •   potentiometers for adjustment
  •   strip board with SMD pads for component parts
  •   protected by a Multifuse
