Measurement & Control. Multifunctional.

The PCI-BASEII is a multifunctional data acquisition and control card for stationary applications. Its modular structure guarantees individual and flexible adjustment to a measuring task. The short latency of the PCI interface makes the card especially attractive for controlling tasks.

Modular Concept. Optimize Price-Performance-Ratio.

Perfectly adapted to the respective measurement application, data acquisition modules can be selected to equip the two module slots of the PCI-BASEII. It is the customer who decides about performance and price of his DAQ system!

Modules: MADDA. MDA. What Would You Like?

A great variety of analog plug-on modules is available differing in the number of inputs and outputs, resolution and sampling rate.

32 Digital I/O. 3 Counters.

The PCI-BASEII features 32 digital lines, which means that the base board is a digital I/O card itself. The direction of the two 16-bit ports is set via software. Three counter accessible via any digital input allow the acquisition of counting pulses or the connection of an incremental encoder.

PCI. Well Fitted in the PC.

The PCI-BASEII is installed in a free PCI slot and is supplied by the PC - all this without annoying cables. The PC housing provides optimum protection against interferences. Due to Plug&Play, the card is recognized automatically by the PC making installation a lot easier.

Windows. That's it.

The PCI-BASEII can be used on Windows XP/7/8/10. The entire software for installation and programming (ActiveX Control) of the multifunction card is included for free.

NextView. Try for Free.

The DAQ card is supported by NextView, the software for data acquisition and analysis. A fully functional 30-day trial is included with delivery to directly test the functionality of the PCI-BASEII.

The most important functions in a nutshell. For technical details see the relating data sheet (PDF).

  •   2 module slots
  •   32 digital channels (2x16 bit, TTL/CMOS)
  •   3 counters (32 bit, max. 16MHz) for pulse or incremental encoder measurement
  •   4k FIFO for fast data acquisition
  •   1 Megasample max. transfer rate

Hardware and Software from One Hand

Drivers, programming support for Windows, Mac OS X, FreeBSD, and Linux, as well as a 30-day full version of the measurement software NextView are included with all DAQ systems for free and can be downloaded from this website.

bmcm Driver Package

USB data acquisition hardware always requires the installation of a device driver to be accessible by software. By providing a free bmcm driver package, the device installation has to be done only once - additional DAQ hardware is installed automatically.

Simply NextView

For all who want to start right away: View and store signals, configure the measurement system, process measuring data and much more.
Test all features of the data ac­qui­sition software 30 days for free!
Next...

Simply LIBAD

Programming leanly and quickly: Use bmcm data acquisition systems in your own programs. The hardware independent programming interface (API) LIBAD is available as DLL in 32 Bit (Windows XP+, MacOS, Linux).
Next...

Or LabView VI's

You are using LabVIEW™? Also possible with data acquisition hardware from bmcm. LabVIEW VI's for our DAQ systems are included with the delivery as well or free for download.
Next...

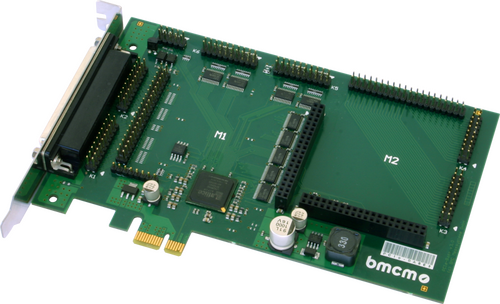

PCIe-BASE
