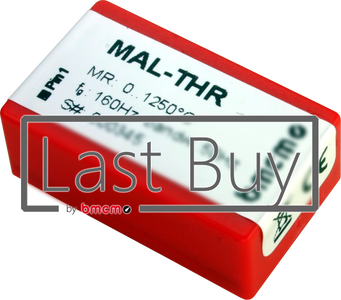

MAL-THR

MAL-THR

€ 99.00

Quantity:

Perfectly Conditioned. Temperature.

Temperature signals of a thermocouple sensor, type K can optimally be adjusted to the input of a PC data acquisition system with the miniature measuring amplifier MAL-THR.

Minimum Size. Great Performance. Small Price.

The miniature format of the MAL-THR is ideal to realize measurement applications even if the installation is in problematic locations. Despite the small size, the measuring amplifier features great functionality. All this at a reasonable price.

0..1250°C IN. 0..5V OUT.

The MAL-THR measures the voltage difference between the two conductors (NiCr-NiAl) of a thermocouple sensor resulting from input temperatures in the range of 0..1250°C. A 0..5V signal proportional to the input signal is provided at the output.

Compatibility.

The MAL series provides a great variety of measuring amplifiers, measuring converters, or filter modules. They can be used in any combination allowing for the solution of the most individual measuring tasks.

Get Connected.

With the backplanes of the BP series varying in size and design, signal connection is easy. The modules just have to be plugged on the relevant slot of the backplane.

The most important functions in a nutshell. For technical details see the relating data sheet (PDF).

size: 24-pin DIL IC
50Hz bandwidth
differential input
measured quantities: temperature (thermocouple, type K), 0..1250°C
cold-junction compensation
output filter 6dB/oct.

Datenblatt - Miniature measuring amplifier MAL-THR for thermocouple (type K) (v. 6.0.1)
