8 Inputs. Temperature.
Up to eight DS18B20 temperature sensors (-55..125 °C) can be connected to the measurement system. Accuracy is ±0.5°C from -10°C to +85°C.

Plug. Clamp. USB-C.
Sensors are connected via pluggable screw terminals. Connected sensors are automatically detected and recorded. Power is supplied through a USB-C connector using a power adapter or powerbank.

Standalone. Mobile. Months.
A sampling rate of 0.1 Hz allows measurement data to be captured for up to 3 months. Data can already be read out via the USB-C connector while recording is in progress.

Analyze. Document.
Measurement data is exported as an lfx or CSV file and can be analyzed with a wide variety of programs. With our measurement software NextView, graphical analyses and complex evaluations can be created quickly and easily.

Compact. Affordable.

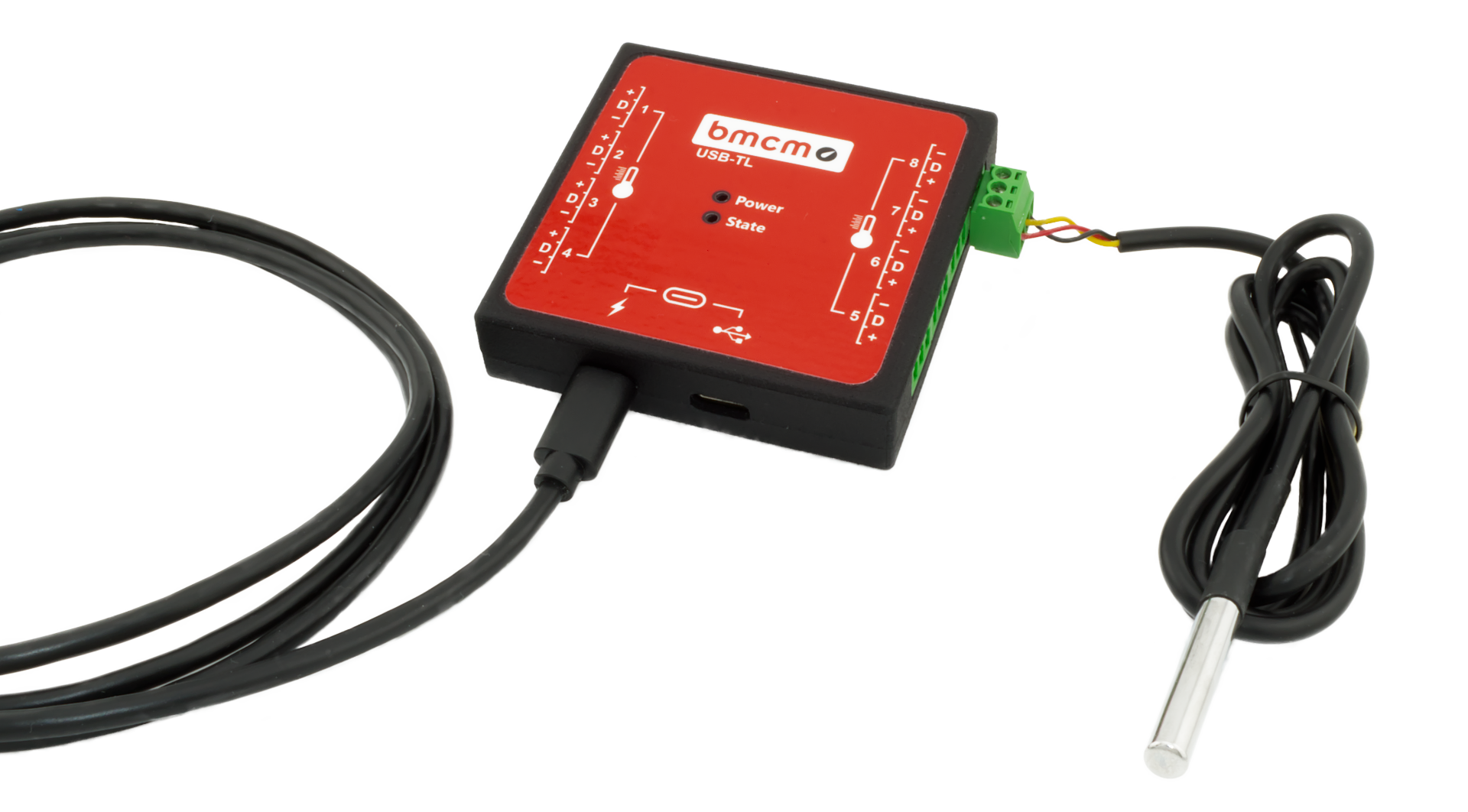

With dimensions of 70mm (L) x 70mm (W) x 17mm (H), the USB-TL is easy to deploy anywhere. One temperature sensor with a matching pluggable screw terminal is included in the scope of delivery.

USB-TL – available worldwide from Q3 2026.
